High-Pass
8-Pole
Butterworth

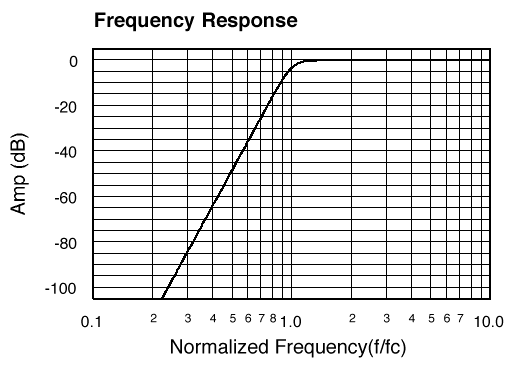

Theoretical Transfer Characteristics
f/fc Amp Phase Delay1
(Hz) (dB) (deg) (sec)

0.10 -160 691 0.819
0.20 -112 661 0.828
0.30 -83.7 631 0.843
0.40 -63.7 600 0.867
0.50 -48.2 568 0.903

0.60 -35.5 535 .956
0.70 -24.8 499 1.04
0.80 -15.6 459 1.19
0.85 -11.6 437 1.29
0.90 -8.06 413 1.40

0.95 -5.15 386 1.48
1.00 -3.01 360 1.46
1.20 -0.229 275 0.873
1.40 -0.020 226 0.540
1.60 -0.002 194 0.380

1.80 0.00 170 0.287
2.00 0.00 152 0.226
2.50 0.00 120 0.139
3.00 0.00 99.2 0.094
4.00 0.00 74.0 0.052

5.00 0.00 59.0 0.033
6.00 0.00 49.0 0.023
7.00 0.00 42.1 0.017
8.00 0.00 36.8 0.013
9.00 0.00 32.7 0.010
10.0 0.00 29.4 0.008


Notes:

  1. Normalized Group Delay:
    The above delay data is normalized to a corner frequency of 1.0Hz.
    The actual delay is the normalized delay divided by the actual corner frequency (fc).
