Appendix A
November, 2000




Low-Pass
3-Pole
Butterworth

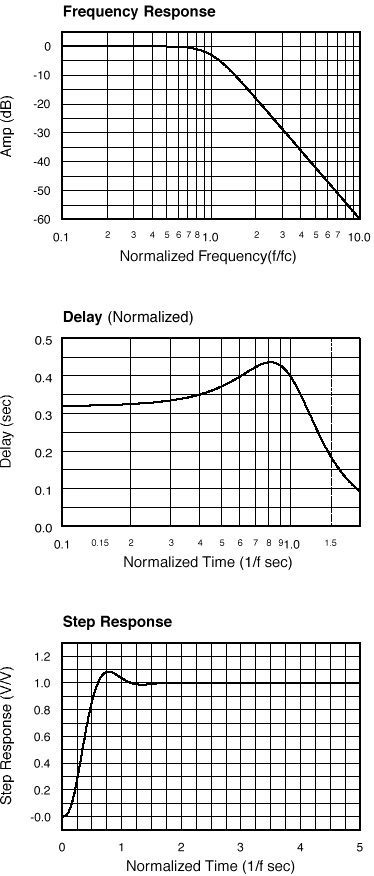

Theoretical Transfer Characteristics

f/fc   Amp   Phase   Delay1
(Hz)   (dB)   (deg)   (sec)







0.10

0.000

-11.5

.320
0.20

0.000

-23.1

.325
0.30

-0.003

-34.9

.335
0.40

-0.018

-47.3

.350
0.50

-0.067

-60.3

.372







0.60
-0.198

-74.1

.398
0.70

-0.483

-88.9

.423
0.80

-1.01

-104

.436
0.90

-1.85

-120

.428
1.00

-3.01

-135

.398

1.10

-4.43

-149

.352
1.20

-6.01

-160

.303
1.30

-7.65

-170

.257
1.40

-9.31

-179

.217
1.50

-10.9

-186

.185

1.60

-12.5

-192

.158
1.70

-14.0

-198

.137
1.80

-15.4

-202

.119
1.90

-16.8

-206

.105
2.00

-18.1

-210

.093

2.50

-23.9

-223

.056
3.00

-28.6

-231

.038
3.50

-32.6

-237

.027
4.00

-36.1

-241

.021
5.00

-41.9

-247

.013

6.00

-46.7

-251

.009
7.00

-50.7

-254

.007
8.00

-54.2

-256

.005
9.00

-57.3

-257

.004
10.0

-60.0

-259

.003

Notes:

  1. Normalized Group Delay:
    The above delay data is normalized to a corner frequency of 1.0Hz.
    The actual delay is the normalized delay divided by the actual corner frequency (fc).


    Normalized Delay
    Actual Delay =
      Actual Corner Frequency (fc) in Hz
