D83P Series
Programmable Amplifier




Purchase





Description

The D83P Series programmable amplifiers are digitally controlled gain modules that were designed for conditioning DC-coupled wide-band signals (AC coupled - optional). They are programmable from -12 dB to +60 dB in 6 dB steps with an 4-bit parallel word.

Other standard performance features include differential input, single ended output, 5V interface logic, and low noise and distortion, making this plug-in ready-to-use amplifier ideal for many signal conditioning applications. Available options include AC coupled input and/or differential output.

Features/Benefits:

  • Full power bandwidth to 100 kHz for wide dynamic range applications
  • Compact 1.8” x 0.8” x 0.3” (32 pin DIP) size minimizes board space requirements
  • Parrallel 4-bit word for easy gain control.
  • Data out line allows data verification and cascading of multiple amplifiers over the same serial interface.
  • Plug-in ready-to-use, reducing engineering design and manufacturing time.

Applications

  • Data acquisition
  • Test equipment
  • Remote instrumentation systems
  • Ground loop elimination in remote measurements
  • Improvements in system dynamic range and resolution
  • Telemetry
  • Process control
  • Digitally controlled auto ranging systems
  • Medical, Scientific & engineering research



Gain Amplifier
Digital Programming & Control

The D83P programs via a four terminal parallel data interface over a gain range from 0.25 (~ -12dB) to 1024 (~+60dB).

Two stages of programmable gain/attenuation are used to optimize the D-C offset and gain bandwidth performance.



Programming Table

Gain ( V/V )

Gain (~dB)

D0

D1

D2

D3

1/4
-12.04
0
0
0
0
1/2
-6.02
1
0
0
0
1
0.00
0
1
0
0
2
+6.02
1
1
0
0
4
+12.04
0
0
1
0
8
+18.06
1
0
1
0
16
+24.08
0
1
1
0
32
+30.10
1
1
1
0
64
+36.12
0
0
0
1
128
+42.14
1
0
0
1
256
+48.16
0
1
0
1
512
+54.19
1
1
0
1
1024
+60.21
0
0
1
1




Specifications

(@ 25°C and Vs ±15 Vdc)

Analog Input Characteristics
  • Configuration: DC coupled, differential Input
  • AC Coupled (Optional): Fixed @ 10Hz
  • Impedance: 1 MΩ || 22pF
  • Bias Current: 20 pA max.
  • Offset Current: 10 pA max.
  • Voltage Range: ±10 Vpeak
  • Max. Safe Voltage: ±Vs
  • Common Mode Rejection Ratio:
    Typ. 80 dB @ 1 kHz
    Min. 60 dB
    @ 1 kHz
  • Noise Voltage Density, RTI:
    20nV/sq.rt.Hz @ 1 kHz, G=1,024

Analog Output Characteristics

  • Configuration: Single ended, DC coupled
  • Differential Output: (Optional)
  • Impedance:
    1 Ω typ., 10 Ω max.
  • Current (linear operation): ±5 mA max.
  • Offset Voltage:
    2 mV RTI, NTE 40mV max.
  • Offset Temp. Coeff.: ±(5 + 100/G) µV/°C
General Analog Characteristics
  • Gain (Programmable): 0.25X to 1,024X in factors of 2
  • Gain Tolerance: ±0.10 dB
  • Distortion (0 dB gain @ 3.5 Vrms):
    -86 dB @ 1 kHz typ.
  • Full Power Bandwidth (0 dB gain): 100 kHz

Power Supply (±Vs), +Vd

  • Rated Voltage: ± 15 Vdc
  • Operating Range:
    ± 5 to ± 18 Vdc, 5 ± 0.5 Vdc
  • Maximum Safe Voltage:
    ± 18 Vdc, ± 5.5 Vdc
  • Quiescent Current:
    ±15V: ± 12 mA
    +5V: + 0.2 mA

Temperature

  • Operating: 0 to + 70°C
  • Storage: -25 to+85°C

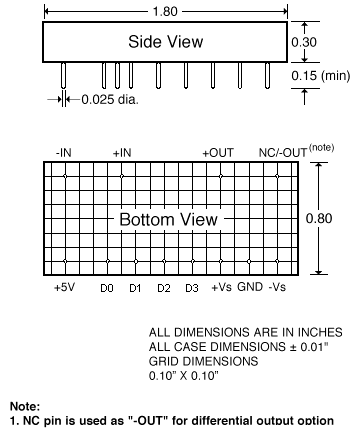

Pin-Out and Package Data


Ordering Information
