D01EVR Series

25 Hz to 1.00 MHz
32-Pin DIP
Specifications

Pin-out and package data

Ordering Information


Download PDF File

Download Adobe Acrobat Reader
Download Acrobat Reader

D01-EVR Series
Fixed Frequency
8-Pole Filter





Purchase





Description

The D01EVR is a small, fixed-frequency, linear active DIP filters provide high performance linear, multi-pole filtering in a compact package. These Butterworth and Bessel low-pass filters combine the excellent performance of linear multi-pole filter design with the space saving of the dual in-line package (DIP). Each model comes factory tuned to a user-specified corner frequency between 25Hz and 1 MHz. These fully self-contained units require no external components or adjustments. They operate with dynamic input voltage range from non-critical ±2.5V to ±15V power supplies.

Features/Benefits:

  • Low harmonic distortion and wide signal-to-noise ratio to 12 bit resolution
  • Compact DIP design minimizes board space requirements
  • Plug-in ready-to-use, reducing engineering design and manufacturing time
  • Factory tuned, no external clocks or adjustments needed
  • Broad range of pole configurations aner frequencies to meet a wide range of applications





Applications

  • Anti-alias filtering
  • Data acquisition systems
  • Video systems
  • Communication systems and electronics
  • Medical electronics equipment and research
  • Aerospace, navigation and sonar applications
  • Sound and vibration testing
  • Real and compressed time data analysis
  • Noise elimination
  • Signal reconstruction

Available Low-Pass Models:

D01L8B-EVR 8-pole Butterworth
D01L8L-EVR 8-pole Bessel


Fixed Frequency
8-Pole
Low-Pass Filter

Model D01L8B-EVR D01L8L-EVR
Product Specifications
Transfer Function


Size

Range fc

8-Pole,
Butterworth

1.80" x 0.80" x 0.30"

25 Hz to 1 MHz
8-Pole,
Bessel

1.80" x 0.80" x 0.30"

25 Hz to 1 MHz
Theoretical Transfer
Characteristics
Click to view
Click to view
Passband Ripple
   (theoretical)
0.0 dB 0.0 dB
DC Voltage Gain

(non-inverting)
0 ± 0.1 dB max.
0 ± 0.02 dB typ.
0 ± 0.1 dB max.
0 ± 0.02 dB typ.
Stopband
Attenuation Rate
48 dB/octave 48 dB/octave
Cutoff Frequency
  Stability
  Amplitude
  Phase
fc              ± 5% max.
± 0.02% /°c
- 3 dB
-360°
fc              ± 5% max.
± 0.02% /°c
- 3 dB
-182°
Filter Attenuation

(theoretical)
0.12 dB       0.80 fc
3.01 dB       1.00 fc
60.0 dB       2.37 fc
80.0 dB       3.16 fc
1.91 dB       0.80 fc
3.01 dB       1.00 fc
60.0 dB       4.52 fc
80.0 dB       6.07 fc
Phase Match1
Amplitude Accuracy1
Total Harmonic
Distortion @ 2.5V
RMS
1 kHz        < -80 dB typ.
100 kHz    < -65 dB typ.
1 kHz        < -80 dB typ.
100 kHz    < -65 dB typ.
Wide Band Noise

(5 Hz - 2 MHz)
250 µVrms typ. 250 µVrms typ.
Narrow Band Noise
(5 Hz - 100 kHz)
30 µVrms typ. 30 µVrms typ.
Filter Mounting
Assembly
NA NA
1. Unit to unit match for the same transfer function, set to the same frequency and operating configuration, and from the same manufacturing lot.

NA - Not available


Specifications

(@ 25°C and Vs ± 15 Vdc)

Analog Input Characteristics 1
  • Impedance: 1 kΩ min.
  • Voltage Range: ± 10 Vpeak
  • Max. SafeVoltage: ± Vs

Analog Output Characteristics

  • Impedance (Closed Loop): <1 Ω typ.
  • Linear Operating Range: ± 10V
  • Maximum Current 2:
    fc ³ 50 kHz ± 30 mA max.
    fc < 50 kHz ± 15 mA max.
  • Offset Voltage 3: ±10 mV max.
  • Offset Temp. Coeff.: 50 µV / °C

Notes:

  1. Input and output signal voltage referenced to supply common.
  2. Output is short circuit protected to common. DO NOT CONNECT TO ± Vs.
  3. Adjustable to zero.
  4. Units operate with or without offset pin connected.
Power Supply (± Vs)
  • Rated Voltage: ± 15 Vdc
  • Operating Range: ± 2.5 to ± 15 Vdc
  • Maximum Safe Voltage: ±15 Vdc
  • Quiescent Current:
    8-pole - ± 30 mA max.

Temperature

  • Operating: 0 to + 70°C
  • Storage: -25 to+85°C


Pin-Out and Package Data

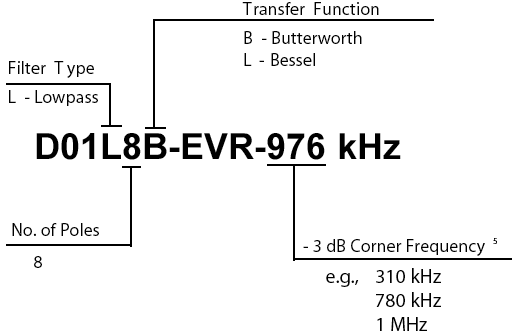

Ordering Information
