Filter Mount > FMA02

FMA-02A

Filter Mounting
Assembly
For
424, 428, 824 & 828 Series Programmable
Filter Modules


Download PDF File

Download Adobe Acrobat Reader
Download Acrobat Reader

FMA-02A
Single Channel Filter Mounting Assembly


Purchase





Description

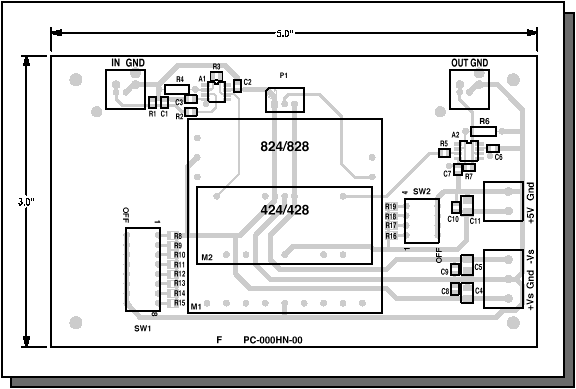

The FMA-02A is a filter mounting assembly that eliminates the need to breadboard or hand-wire filter modules into individual test set-ups. The FMA-02A is a factory assembled 3" x 5" printed-circuit board with socket pins for filter insertion, various electronic components, and screw terminal connections for power and signal input/output. FMA-02A’s will operate any of the low-pass, high-pass, band-pass or notch 424, 428, 824 and 828 series filter modules.

Features/Benefits:

  • No more building of breadboards.
  • Utilized as a single channel bench-top test set or rack mounted via mounting holes for instrumentation applications.
  • Accepts a broad range of programmable filter modules allowing for selected cut-off frequencies and transfer functions specific to each application.
  • Provide quick and easy connection between circuit card and wired electrical circuits.
  • All external connections are easily made with a screwdriver, reducing engineering design, set-up and test time.


Applications

  • Aerospace, navigation, sonar applications
  • ATE, research and development
  • Automotive and transportation
  • Communication systems and electronics
  • Data acquisition systems
  • Industrial process control
  • Medical electronics equip. and research
  • Sound and vibration testing
  • Noise elimination
  • Signal reconstruction

See Our new FMA Power Supply which can power multiple filters. FMA-PS

Low-Pass Filters Available:



High-Pass Filters Available:

424
4-pole
10.0 Hz to 102.4 kHz

424
4-pole
10.0 Hz to 102.4 kHz
824
4-pole
1.00 Hz to 102.4 kHz

824
4-pole
1.00 Hz to 102.4 kHz
428
8-pole
10.0 Hz to 102.4 kHz

428
8-pole
10.0 Hz to 102.4 kHz
828
8-pole
1.00 Hz to 102.4 kHz

828
8-pole
1.00 Hz to 102.4 kHz



Band-Pass Filters Available:





Band-Reject (Notch) Filters Available:

824BP
2-pole pair
1.00 Hz to 102.4 kHz

828BR
4-pole pair
1.00 Hz to 102.4 kHz
828BP
4-pole pair
1.00 Hz to 102.4 kHz

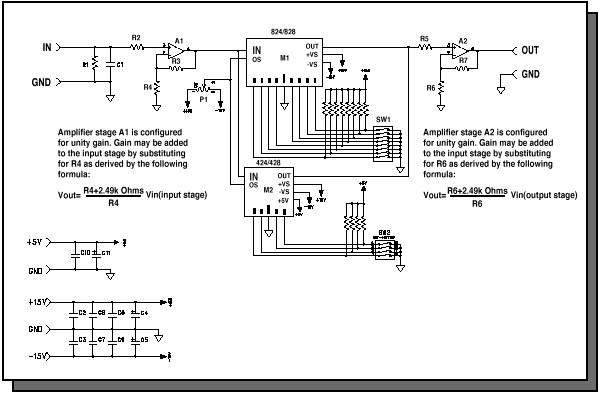

Schematic


Block Diagram
