Filter Mount > FMA03

FMA-03A

Filter Mounting
Assembly
For
854, 858, R854 & R858 Series Programmable
Filter Modules


Download PDF File

Download Adobe Acrobat Reader
Download Acrobat Reader

FMA-03A
Single Channel Filter Mounting Assembly


Purchase





Description

The FMA-03A is a filter mounting assembly that eliminates the need to breadboard or hand-wire filter modules into individual test set-ups. The FMA-03A is a factory assembled 3" x 5" printed-circuit board with socket pins for filter insertion, various electronic components, and screw terminal connections for power and signal input/output. FMA-03A’s will operate any of the low-pass or high-pass 854 and 858 programmable and R854 and R858 range switch programmable series filter modules.

Features/Benefits:

  • No more building of breadboards.
  • Utilized as a single channel bench-top test set or rack mounted via mounting holes for instrumentation applications.
  • Accepts a broad range of programmable filter modules allowing for selected cut-off frequencies and transfer functions specific to each application.
  • Provide quick and easy connection between circuit card and wired electrical circuits.
  • All external connections are easily made with a screwdriver, reducing engineering design, set-up and test time.


Applications

  • Aerospace, navigation, sonar applications
  • ATE, research and development
  • Automotive and transportation
  • Communication systems and electronics
  • Data acquisition systems
  • Industrial process control
  • Medical electronics equip. and research
  • Sound and vibration testing
  • Noise elimination
  • Signal reconstruction

See Our new FMA Power Supply which can power multiple filters. FMA-PS

Low-Pass Filters Available:



High-Pass Filters Available:

854
4-pole
0.10 Hz to 102.4 kHz

854
4-pole
0.10 Hz to 102.4 kHz
858
8-pole
0.10 Hz to 102.4 kHz

858
8-pole
0.10 Hz to 102.4 kHz
R854
4-pole
1.00 Hz to 102.4 kHz

R854
4-pole
1.00 Hz to 102.4 kHz
R858
8-pole
1.00 Hz to 102.4 kHz

R858
8-pole
1.00 Hz to 102.4 kHz

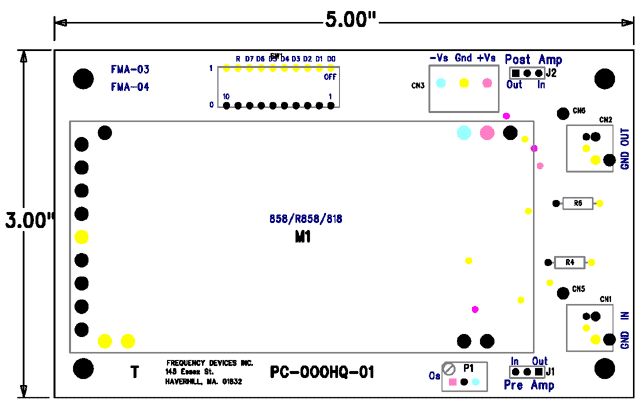

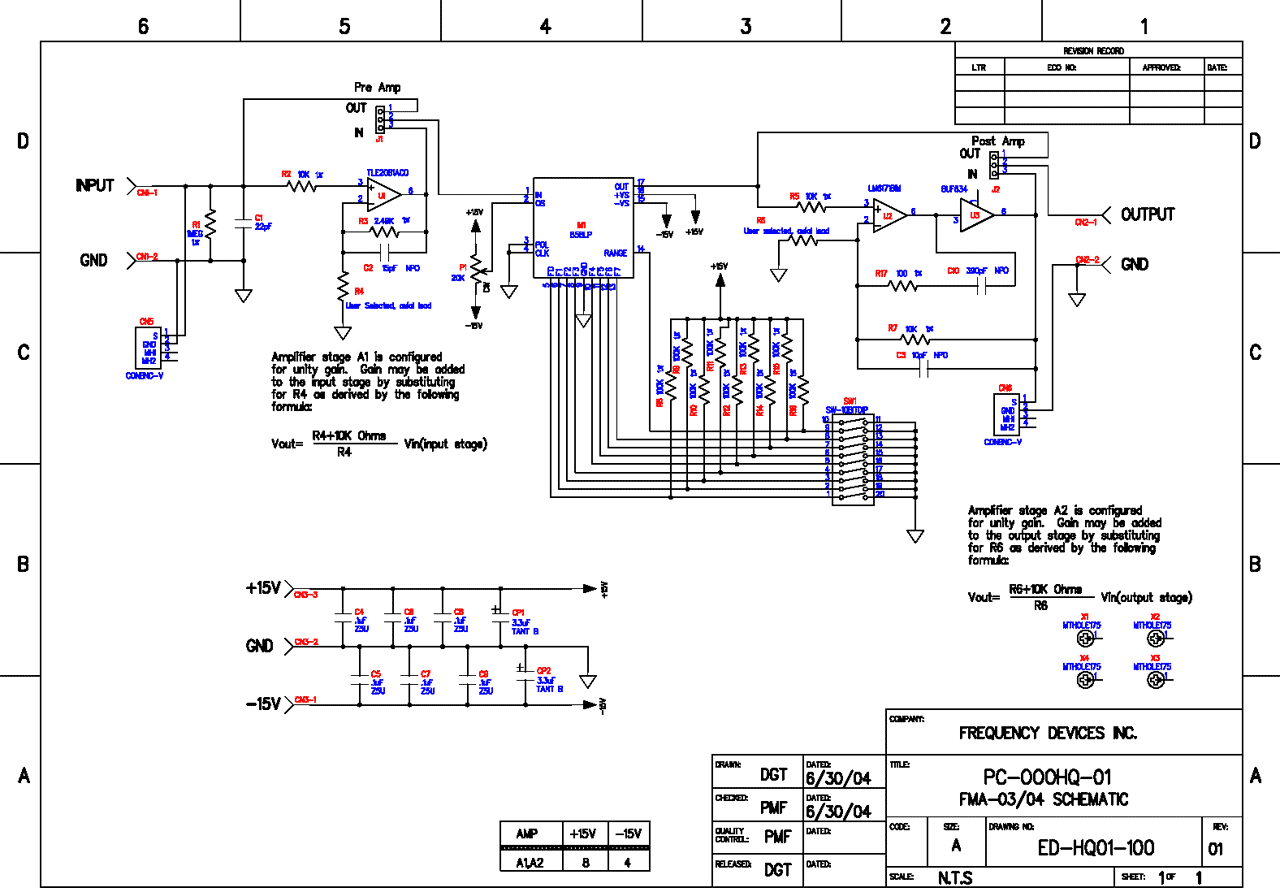

Schematic


Block Diagram
