Oscillator Mount > OMA1

OMA1B/T

Oscillator Mounting
Assembly
For
D45, DX45 and DX45Q
Fixed Frequency Oscillators


Download PDF File

Download Adobe Acrobat Reader
Download Acrobat Reader

OMA1
Single Channel Oscillator Mounting Assembly


Purchase





Description

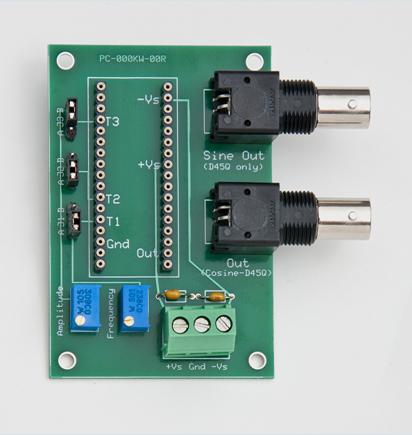

The OMA1 Oscillator Mounting Assembly eliminates the need to breadboard or hand-wire oscillator modules into individual test set-ups. OMA1’s are factory assembled 3” x 2” printed-circuit boards with socket pins for oscillator insertion, adjustment pots for frequency and amplitude, screw terminal connections for power, and either screw terminal connections or BNC connectors for signal outputs. The OMA1 operates with any of the D45, DX45, or D45Q series oscillator modules.

Features/Benefits:

  • No more building of breadboards.
  • Utilized as a single channel bench-top test set or rack mounted via mounting holes for instrumentation applications.
  • Provides quick and easy connection between circuit card and wired electrical circuits.
  • All external connections are easily made with a screwdriver, reducing engineering design, set-up, and test time.


Applications

  • Aerospace,navigation,sonar applications
  • ATE,research and development
  • Automotive and transportation
  • Communication systems and electronics
  • Industrial process control
  • Medical electronics equipment and research
  • Reference oscillator
  • Distortion testing

The OMA1 is available with either BNC or terminal block output connectors.  Order the OMA1B for BNC output connectors or the OMA1T for terminal block output connectors.

The OMA1 has three jumpers that can be used to configure it for use with the D45, DX45, or D45Q oscillators.  They can also be used to enable the adjustment of the amplitude and frequency of the D45 and DX45 oscillators.  Use the following table to set up the OMA1.

Oscillator

Frequency

Amplitude

J1

J2

J3

D45 & DX45

Fixed

Fixed

B

B

A

D45 & DX45

Fixed

Adjustable

B

B

B

D45 & DX45

Adjustable

Fixed

A

A

A

D45 & DX45

Adjustable

Adjustable

A

A

B

D45Q

Always Fixed

Always Fixed

B

X

X

X = Don’t Care

The OMA1 comes with 10 turn pots installed to adjust the D45 or DX45 frequency and/or amplitude provided the jumpers are set properly.


Top Layout
