D101H Series
4- and 8- Pole High-Pass Filters



U.S. Selling Price (1-9) D101H4 ... $320.00 ea.
D101H8 ... $490.00 ea.
Orders for Export U.S. Selling Price + 20%
Minimum Order Value $150.00 F.O.B. Ottawa, IL
Lead-Time: 2 weeks A.R.O. Accept Visa, Mcard, Amex
(No Longer Available)
Shopping Cart





Description

D101H Series are low noise 4- and 8-pole, Butterworth fixed frequency high-pass filters. These filters feature near theoretical low noise performance, by providing typically -110 dB noise floors (19-Bit). D101H’s take advantage of FDI’s design expertise utilizing high performance amplifiers and surface-mount technology to provide design engineers with precision signal conditioning solutions in a compact package. These fully self-contained units require no external components or adjustments. Each D101H comes factory tuned to a user specified corner frequency between 1.0 kHz to 500 kHz and operate over an input voltage range to ±10 V.

Features/Benefits:

  • Small 32-pin DIP (1.8"L x 0.8"W) footprint minimizes board space requirements.
  • Plug-in ready-to-use, reducing engineering design and manufacturing cycle time.
  • Factory tuned, no external clocks or adjustments needed
  • Broad range of corner frequencies to meet a wide range of applications.





Applications

  • Transducer output filtering:
  • Production test instrumentation
  • Medical electronics equipment and research
  • Noise and harmonic analysis
  • Frequency spectrum analysis

Available High-Pass Models:

D101H4B
4-pole Butterworth
D101H8B
8-pole Butterworth


1.0 kHz to 500 kHz
Low Noise
D101H Series
Fixed Frequency
4- and 8- Pole
High-Pass Filters

Model D101H4B D101H8B
Product Specifications
Transfer Function


Size

Range fc

4-Pole,
Butterworth

1.8" x 0.8" x 0.3"

1.0 kHz to 500 kHz

8-Pole,
Butterworth

1.8" x 0.8" x 0.3"

1.0 kHz to 500 kHz

Theoretical Transfer
Characteristics
Click to view
Click to view
Passband Ripple
   (theoretical)
0.0 dB 0.0 dB
DC Voltage Gain @ 5MHz

5 Vpeak
(non-inverting)
0 ± 0.2 dB typ.
0 ± 0.4 dB max.
0 ± 0.2 dB typ.
0 ± 0.4 dB max.
Stopband
Attenuation Rate
24 dB/octave 48 dB/octave
Cutoff Frequency
  Stability
  Amplitude
  Phase
fc             ± 1% max.
± 0.01% /°C
- 3 dB
-180°
fc             ± 1% max.
± 0.01% /°C
- 3 dB
-360°
Filter Attenuation

(theoretical)
40 dB        0.31 fc
30 dB        0.42 fc
3.01 dB       1.00 fc
0.02 dB       2.00 fc
80 dB         0.31 fc
60 dB         0.42 fc
3.01 dB       1.00 fc
0.00 dB       2.00 fc
Power Bandwidth 5 MHz max 5 MHz max
Wide Band Noise
To 10 MHz
< 130 µVrms < 130 µVrms
Noise Density
(Out of Band)
< 50 nV/ < 50 nV/
Narrow Band Noise
(@Fc & 10Vp-p)
< 300 nV/
< 300 nV/
Filter Mounting
Assembly1

1. Use I/O jumpers to bypass input and output buffers, for low noise operation. With FMA-01S, D101H distortion specs above 100kHz will degrade.



Specifications

(@ 25°C and Vs ± 5 Vdc)

Analog Input Characteristics 1
Impedance: 1.0 k min.
Voltage Range: ± 10 Vpeak
Max. SafeVoltage: ± Vs

Analog Output Characteristics

Load impedance 2 k min.
Linear Operating Range for THD ± 5V
Operating Range for low Noise ± 10V
Current 2 @ (Vs @ ± 15V) 5.0 mA max.
Offset Voltage 10 mV typ.
20 mV max.
Offset Temp. Coefficient 50 µV / °C

Notes:

  1. Input and output signal voltage referenced to supply common.
  2. Output is short circuit protected to common. DO NOT CONNECT TO ± Vs.
Power Supply (± Vs)
Rated Voltage ± 15 V
Operating Range ± 5 V min.
± 18 V max.
Quiescent Current
D101H4B
20 mA typ.
30 mA max.
D101H8B
40 mA typ.
60 mA max.

Temperature Range

Operating 0 to + 70°C
Storage -25 to+85°C

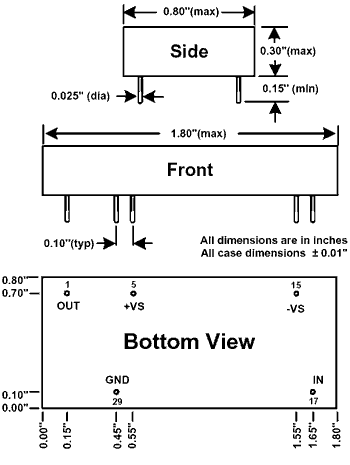

Pin-Out and Package Data

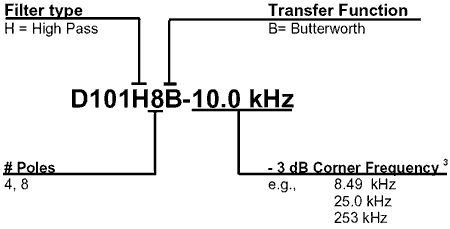

Ordering Information

Notes:

3.
How to specify Corner Frequency. Corner frequency is specified by attaching a three-digit frequency designator to the basic model number. Corner frequencies can range from 1.0 kHz to 500 kHz.
