SPP-01 Series
Dual Channel, Differential Input
Signal Processing Platform


U.S. Selling Price (1-9) SPP-01M (2-Chl. - Master)
........................ $740.00 ea.

SPP-01S (2-Chl. - Slave)
........................ $730.00 ea.
Orders for Export U.S. Selling Price + 20%
Minimum Order Value $150.00 F.O.B. Ottawa, IL
Lead-Time: 2 weeks A.R.O. Accept Visa, Mcard, Amex
Shopping Cart





Description

Design engineers now have an off-the-shelf precision, dual channel hardware solution that acts as its own evaluation board to facilitate algorithm development and new product design. Designers can generate application specific algorithms, modify software or load existing coefficient sets into the SPP-01 platform via an available RS232 interface that provides unlimited customization and field upgrades, minimizing inventory and extending product life cycle.

All algorithms are verified via an on-board JTAG port that allows the emulator to communicate with the SPP-01 hardware. After programming, SPP-01's can be directly inserted into production applications as a finished subassembly. This minimizes product development and manufacturing cycle times while providing precise unit-to-unit matching in a small 2" x 2" footprint
.

The SPP-01 Series of Signal Processing Platforms are programmable over a 20 kHz audio frequency range and offer up to 9-bits of addressing. This dual channel DSP design and development solution contains anti-alias and reconstruction filters along with ADC's and DAC's offering low noise and distortion signal processing with THD approaching -100 dB. Sampling at 48 kHz the fixed point DSP utilizes 32-bit math to achieve 24-bits of precision.

Features/Benefits:

  • Compact dual channel design combined with large program memory (256 k EE-Prom) and 4 Mbits of flash optimizes your DSP processing power in minimal board space.

  • Socketed SPPDB-01 development hardware offers rapid set-up, programming and performance evaluation, shortening the product development cycle while insuring high precision field installation.

  • Field programmability, Analog I/O and storage for 100's of standard or customer application specific algorithms, provide designers with unmatched design, implementation and field upgrade flexibility.

  • For multi-channel applications, design engineers can have phase synchronous operation by providing an external buffer to the SLAVE clock input.





Applications

  • Brick-Wall; High-Pass, Low-Pass, Band-Pass, Band-Reject and Multi-Rate filters with Linear Phase and Signal Generators for Data Acquisition Systems.
  • Speech analysis, research, pathology
  • Sound and vibration testing
  • Signal correlation / data analysis
  • Low distortion waveform generator: sine/cosine, quadrature or custom.



AVAILABLE PLATFORM PRODUCTS:

SPP-01
Plug and play hardware / evaluation board, programmable with turnkey or customer generated algorithms.

SPPDB-01
Development Board, for SPP-01 family products.Also may be used as a mounting assembly.

SPPDS-01
Development Suite for all SPP platform products. Requires TI's Code Composer StudioTM.

SPPDF-01
Development Suite for SPPDM-01 FIR filter products. Requires MatLabTM V5.3 or 6.0.

SPPDM-01
FIR filter design platform.


SPP-01 Block Diagram


DSP Solutions
with Analog Input/Output



SPP-01 Series
Dual Channel, Differential Input
Signal Processing Platform


Typical Program Selection Port Protocol

Data Format
  • Logic "0"
0VDC Min - 2VDC Max
  • Logic "1"
3.5VDC Min - 5VDC Max
Bit Weighting (Binary Coded)
D0 LSB
D7 or D8 MSB

Program Selection:
8-Bit: 256 filters with different FIR algorithms on each channel.
9-Bit: 512 filters with different FIR algorithms on each channel





 8 - Bit Programming Table

MSB
---
---
---
---
---
---
LSB
Bit
Weight
27

D7

26

D6

25

D5

24

D4

23

D3

22

D2

21

D1

20

D0

Program
address
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
1
2
0
0
0
0
0
0
1
1
4
0
0
0
0
0
1
1
1
8
0
0
0
0
1
1
1
1
16
0
0
0
1
1
1
1
1
32
0
0
1
1
1
1
1
1
64
0
1
1
1
1
1
1
1
128
1
1
1
1
1
1
1
1
256

1. The program selection data word bus consists of D0 to D7 for 8 - bit programming.
2. The channel selection bit is D8. For D8, Channel 1 is "0" and Channel 2 is "1".

 9 - Bit Programming Table

MSB
---
---
---
---
---
---
---
LSB
Bit
Weight
28

D8

27

D7

26

D6

25

D5

24

D4

23

D3

22

D2

21

D1

20

D0

Program
address
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
1
2
0
0
0
0
0
0
0
1
1
4
0
0
0
0
0
0
1
1
1
8
0
0
0
0
0
1
1
1
1
16
0
0
0
0
1
1
1
1
1
32
0
0
0
1
1
1
1
1
1
64
0
0
1
1
1
1
1
1
1
128
0
1
1
1
1
1
1
1
1
256
1
1
1
1
1
1
1
1
1
512

1. The program selection data word bus consists of D0 to D8 for 9 - bit programming.
2. The channel selection bit is D9. For D9, Channel 1 is "0" and Channel 2 is "1".





DSP Solutions
with Analog Input/Output



SPP-01 Series
2" X 2"
Dual Channel, Differential Input
Signal Processing Platform


SPP-01
Performance Specifications

Available bandwidth DC to 20 kHz
Frequency Accuracy < ± 0.05 %
Amplitude Accuracy at unity gain. < ± 0.1 dB
Total Broad Band Noise
(Ref to input 3.53 VRMS)
< -100dB Max
Total Harm. Dist.(THD)
(10V peak to peak)
<-100 dB Max. to 20 kHz
Channel to Channel phase tracking < ± 0.10o
Cross talk dual channel version with different signals on each channel DC to 20K < - 100 dB Typ.
Temperature
Operating
Storage

0 to +70
o
-25 to +85
o
Size 2.0" x 2.0"





Specifications
(@ 25°C and Vs ±15 Vdc)

Analog Input Characteristics

Maximum Input Impedance
1.0 M W
Input voltage
± 10 V peak

Analog Output Characteristics

Minimum load Impedance
10 k W
Maximum capacitive load
50 pF
Output voltage
± 10 V peak
Offset Voltage
2 mV Typ. 10mV Max.

Power Supply (±Vs)
Analog Vs range
±12Vdc Min to
±15 Vdc Max.
Analog supply current at Max. Vs
17 mA Typ.
Digital PS Voltage
+5 Vdc
Digital supply current
150 mA Typ.
Power consumption at Max. Vs
1.5 watts Max.

Care must be taken to stay above the minimum Vs in order to maintain the linearity and distortion performance of the DSP platform.


See SPPDS-01 Operations Manual, Appendix D for the
Field Programmability Design Guidelines and Schematic


Pin-Out and Package Data

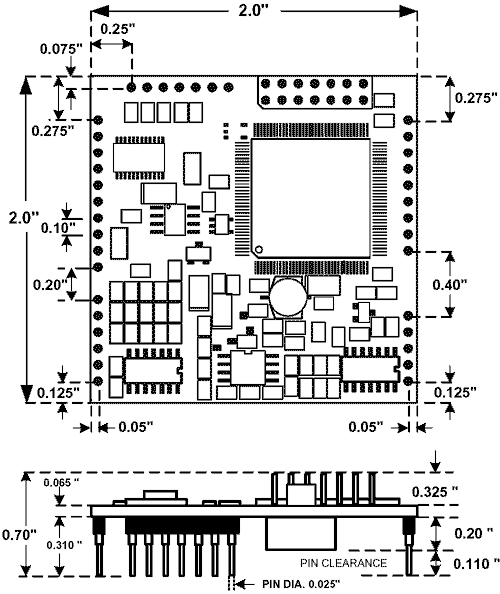

SPP-01 Top View and Dimensions
All normal pin spacing 0.10"


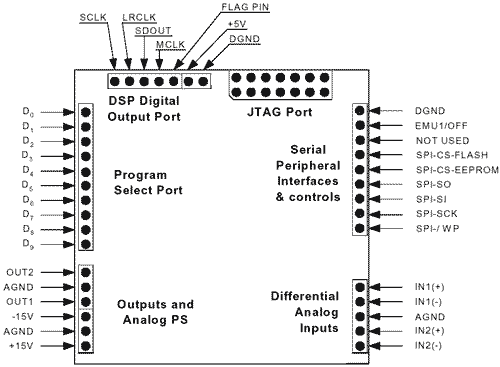

SPP-01 Top View Pin Identification

D0 – D8

9-bit Frequency select pins
D8*   * 8-bit Ch select; Ch 1=0, Ch 2=1
D9
  Channel 1 or 2 select
Out 1 & 2
  Analog outputs
±Inputs 1&2 Differential analog inputs
± 15 Vdc

Analog Dc power In
+ 5 Vdc

Digital Power In
A Gnd
  Analog Grounds (3)
D Gnd
  Digital Grounds (2)
JTAG™ JTAG port, see SPPDS-01

Ordering Information

SPP-01M MASTER
SPP-01S SLAVE
SPP-01M or S- CXX Custom algorithms will be individually quoted.
