PGA5 Series
Programmable Amplifiers
for VME Boards


Purchase





Description

The PGA5 Series programmable amplifiers are digitally controlled gain modules that were designed for Frequency Devices multi-channel VME board products to condition DC-coupled wide-band signals. They are programmed by an 8-bit serial data stream for gain selection using clock,data and strobe inputs. Other standard performance features include differential input,single ended output,5V interface logic and low noise/distortion.Available options include AC coupled input (all models)and/or differential output (VM32PA)only.

Features/Benefits:

  • Phase match of ±1.0 º for the PGA5-100 nd ±2.0 º for the PGA5-2.0 with Gain accuracy of ±0.1 dB provides precision performance solutions to design engineers,system integrators and OEM 's.

  • Offers a low cost,versatile and convenient way to provide up to 32 channels of precision amplification in a single width B-size (6U)VME form factor.





Available Amplifier Options:

VM32PA-PGA5-100   -12 dB to +60 dB in 6 dB steps for frequencies to 100 kHz



VM32PA2.0-PGA5-2.0 -12 dB to +36 dB in 6 dB steps for frequencies to 2.0 MHz




Specifications

PGA5 Series

Programmable Amplifiers
for VME Boards

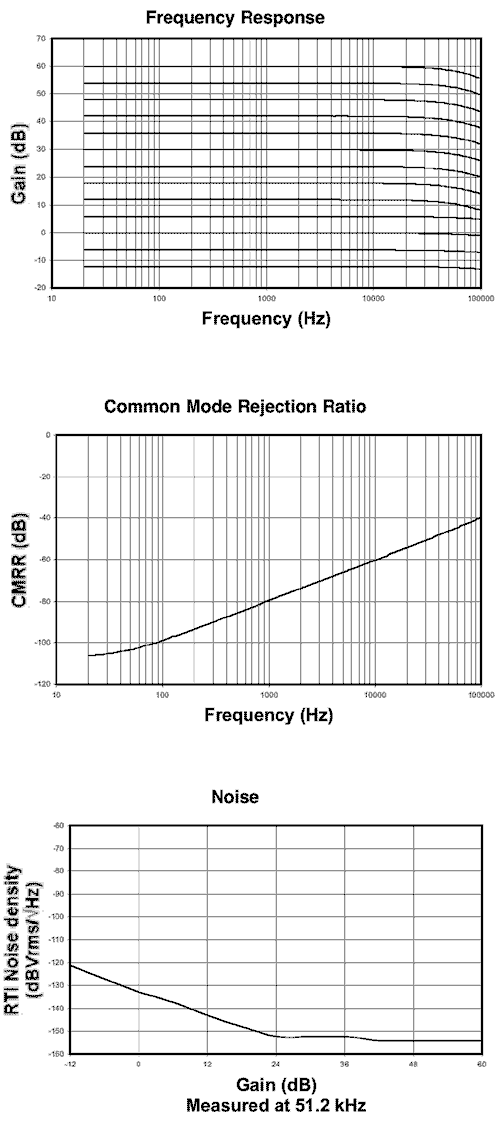

PGA5-100

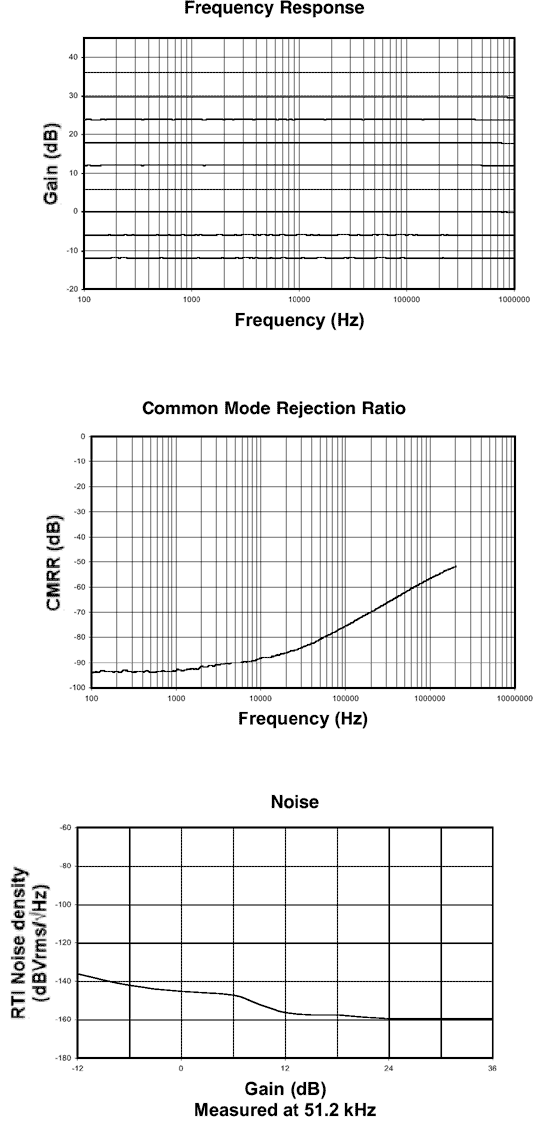

PGA5-2.0




PGA5 Series

Specifications

(@ 25°C and rated power Input)

Programmable Amplifiers
for VME Boards

VME Board VM32PA
PGA5-100
VM32PA2.0
PGA5-2.0
Analog Input
Configuration
Impedance
Bias Current
Offset Current
Safe Voltage
Linear Input Range
CMRR




DC coupled, differential input
1 M
W// 22pF
20 pA max.
10 pA max.
±15V
8V pk, each leg
Typ. 80 dB @ 1 kHz
min. 60 dB, 10 Hz to 100 kHz

DC coupled, differential input
1 M
W//22pF
10 pA max.
10 pA max.
±10V
8V pk, each leg
>= 50 dB, DC to 100 kHz
>= 40 dB, 100 kHz to 2 MHz
AC Couple (Optional Fixed Freq.)



10 Hz to 1.0 kHz 20 Hz to 1.0 kHz
Analog Output
Configuration
Differential Output
Impedance
Linear Operating Range
Chl. to Chl. Cross-talk

Maximum Current
Offset Voltage
Offset Temp. Coeff.




Single ended, DC coupled
Optional
<1
W typ., 10 W max.
±5V, Output clamped to ±9V
<-100dB @ 1 kHz,
<-90dB @ 20 kHz
±5 mA
2mV RTI, NTE 40 mV max.
±(5+ 100/G) µV/ºC

Single ended, DC coupled
NA
1
W typ., 10 W max.
±5V, Output clamped to ±9V
<-100dB @ 1 kHz,
<-90dB @ 20 kHz
±5 mA
<25 mV typ. At output
1.5 mV/ºC at output
25 mV/ºC referred to input
Programmable Amplifier
Signal Bandwidth (-3 dB)




100 kHz, Gain >=6 dB
500 kHz, Gain <6 dB

2 MHz
Amplitude Match*



±0.1dB @ DC,
linear to ±0.25dB at 100 kHz
0.2dB over specified bandwidth
Phase Match*
Noise Voltage Density, RTI
Distortion (2V pk-pk)



0.2º typ., 1º max @ 10 kHz
20nV/ @1kHz,G=1,024
NA
±2.0º over specified bandwidth
16nV/ @1kHz, G=64
<=-60db, 20 Hz to 100 kHz
<=-50 dB, 100 kHz to 2 MHz
Distortion G=2X at 3VRMS Output,
RL-2k ohm, BW=80 kHz
Gain Programming
Gain Accuracy @ DC

-83dB, 1 kHz single ended
-86dB, 1 kHz differential
0.25X to 1024X in factors of 2
±0.1 dB
NA

0.25X to 64X in factors of 2
±0.1 dB
*Any two channels set to same gain and loading
NA - Not Available
