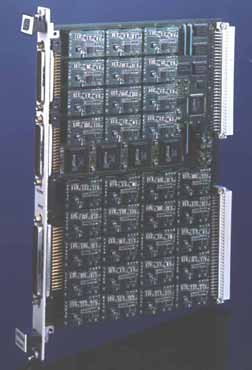

Model VM2.0PAFF
>100 kHz to 2.0 MHz ProgrammableAmplifier/
Fixed Frequency Filter




Purchase





Description

Frequency Devices’ Model VM2.0PAFF comprises a family of VMEbus amplifier/filter boards offering software programmable differential amplifiers combined with precision 4-pole Butterworth or Bessel linear analog filters in a single width B-size (6U) VME form factor. VM2.0PAFF boards provide simultaneous access to 32, DC-coupled wideband signals while providing programmable gain from -12dB to +36dB, in 6dB steps and fixed frequency filters with corner frequencies from >100 kHz to 2.0 MHz. VM2.0PAFF boards may be configured with 8, 16, 24 or 32 channels. The boards conform to VME revision C.1 as an A16/D16 Slave. Available options include AC coupled input .

Features/Benefits:

  • Simultaneous access over 32 channels offers a low cost, versatile and convenient way to provide amplification and filtering.
  • Three active read/write registers provide programming and set-up verification.
  • Phase match of ±2.0° and gain accuracy of ±0.1 dB provides precision performance solutions to design engineers, system integrators and OEM's
  • 4-pole Butterworth or Bessel transfer functions with a broad range of corner frequencies are offered to meet a wide range of applications.
  • High channel count density without sacrificing performance maximizes chassis utilization.





Applications

  • Sonar, navigation and aerospace
  • Engine test and simulation
  • Acoustic and vibration analysis
  • Satellite and telecommunications
  • Laboratory R & D
  • Automatic test equipment (ATE)
  • Industrial process control

Amplifier/Filter Options

PGAB5-2.0   -12 dB to +36 dB in 6 dB steps
    Butterworth 4-pole >100 kHz to 2.0 MHz
PGAL5-2.0   -12 dB to +36 dB in 6 dB steps
    Bessel 4-pole >100 kHz to 2.0 MHz




Specifications

(@ 25°C and rated power input)

Analog Input
  • Impedance: 1 MΩ / 22pF
  • Maximum Input: 20V pk-pk each leg
  • Linear Input Range: ±8V pk
  • AC Couple (Optional Fixed Freq.):
    20 Hz to 1.0 kHz
  • CMRR: >/=50 dB DC to 100 kHz, >/= 40 dB, DC to 2.0 MHz

Analog Output

  • Impedance: 1.0 Ω typ., 10 Ω max.
  • Offset Voltage: 25 mV typ., 50 mV max.
  • Linear Operating Range: ±4V into 500 W
  • Offset Temp. Coeff.:
    ±(5 +100/G) µV/°C max.

Filter Characteristics

  • Anti-alias filtering: Fixed frequency 4-pole low-pass Butterworth or Bessel
  • Cut-off Frequency fc (-3dB):
    >100 kHz to 2.0 MHz
  • Amplitude Match*: ±0.2dB @ DC
  • Phase Match*: 2.0° max. @ fc
  • Noise Voltage Density, RTI:
    25nV/sqrt(Hz) @ 1 kHz
  • Distortion (2 V pk-pk):
    </= -60dB to 100 kHz
    </= -50dB, 100 kHz to 2.0 MHz

* Any two channels set to same gain and loading

Gain
  • Gain Programming (G): 0.25X to 64X in factors of 2:1 (before filtering),
    32 channels programmed over VMEbus with read-back
  • Gain Accuracy @ DC: ±0.1 dB max.

VMEbus

  • Interface: A16/D16, D08 (EO), Slave
  • Registers: Three active R/W registers in 64 byte blocks

Power Supply

  • From VME Backplane:
    +5V - 1.0A max.
    ±12 V - 0.7A max.

Environmental

  • 0perating Temperature: 0°C to +70°C
  • Storage Temperature: -25°C to +85°C
  • Humidity: 0-95% non-condensing

Mechanical

  • Card Size: VMEbus 6U single slot,
    9.17 x 6.3 inches, (233 x 160 mm)
  • No. of Input Channels:
    32 - DC coupled
  • No. of Output Channels:
    32 Single ended - DC coupled,
    Two groups of 16
  • Mating Connectors: Input: Male high density 78-pin D-sub, Quantity 1 Output: Female high density 44-pin D- sub, Quantity 2
  • Weight: 1 LB., (454 grams)
