VM8PF
Programmable
VME Filter Board




Purchase





Description

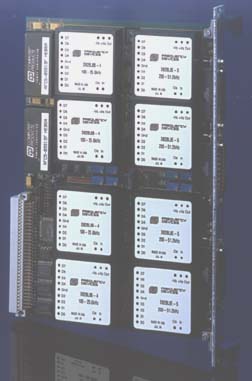

Frequency Devices' Model VM8PF comprises a family of VMEbus filter boards offering eight channels of software programmable, precision linear analog filtering in a single width B-size (6U) VME form factor. VM8PF boards receive up to eight high level differential signal inputs through a shielded front panel connector and provide signal buffering and software programmable filtering with unity gain for each channel. A second connector is wired in parallel with the input connector to facilitate filter bypass. VM8PF boards may be configured with 4- or 8-pole filters in any one of five standard factory set tuning ranges from 1.0 Hz to 102.4 kHz, and with high- or low-pass transfer functions allowing user to externally cascade filters into band-pass configurations. The boards conform to VME revision C.1 as an A16/D16 Slave.

Features/Benefits:

  • Simultaneous access over 8 channels provides a low cost, versatile and convenient way to control filtering.
  • Solves precision performance problems of design engineers, system integrators and OEM's
  • Broad range of transfer characteristics and corner frequencies are offered to meet a wide range of applications
  • Low harmonic distortion and wide signal-to-noise ratio to 16-bit resolution

Applications

  • Engine test and simulation
  • Automotive test cells
  • Aerospace, navigation & sonar
  • Laboratory R & D
  • Acoustic and vibration analysis
  • Satellite & Telecommunications
  • Automatic test equipment (ATE)
  • Industrial process control


LOW-PASS FILTER OPTIONS

  4-pole D824
  8-pole D828
  HIGH-PASS FILTER OPTIONS
  4-pole D824
  8-pole D828
  BAND-PASS FILTER OPTIONS
  2-pole pair 824BP
  4-pole pair 828BP
  BAND-REJECT (NOTCH) FILTER OPTIONS
  4-pole pair 828BR



















Specifications

(@ 25°C and rated power input)

Analog Input
  • Impedance: 1 MW
  • Input Range: ±10 Vpk. Iinear
  • Maximum Input: ±15V
  • Common Mode Rejection:
    70 dB typ., 60dB min. DC to 1 kHz

Analog Output

  • Impedance: 1 Ω typ.,
    10 ohms max.
  • Linear Operating Range: ±10V pk.
  • Channel to Channel Crosstalk:
    -95 dB typ. DC to 100 kHz
  • Maximum Current: ± 2mA
  • Offset Voltage: ± 2mV typ.
    trimmable to zero
  • Short Circuit Protection:
    Short to Ground

Filter Characteristics

Gain

  • Low-pass: X1, ± 1%,
    High-pass: X1, ± 2%
VMEbus
  • Interface: A16/D16, D08(EO) Slave only, VME Spec. Rev. C.1

Power Supply

  • From VME Backplane: +5V, 3.5A max.

Environmental

  • Operating Temperature: 0°C to +70°C
  • Storage Temperature: -25°C to +85°C
  • Humidity: 0-95% non-condensing

Mechanical

  • Card Size: VMEbus 6U single slot,
    9.17 x 6.3 inches, (233 x 160 mm)
  • No. of Input Channels:
    8 Differential - DC coupled
  • No. of Output Channels:
    8 Single Ended - DC coupled
  • Mating Connectors: 25-pin "D", Quantity 3
  • Weight: 3 Ibs., (1.36 kg.)
