D61 Series

0.02 Hz to 1.00 Hz
32-Pin DIP
Footprint

Specifications

Pin-out and package data

Ordering Information


Download PDF File

Download Adobe Acrobat Reader
Download Acrobat Reader

D61 Series
Fixed Frequency
4-Pole Filters




Purchase





Description

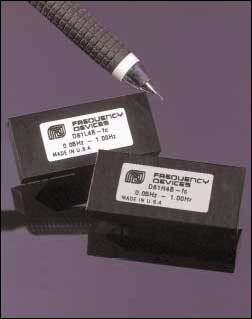

The D61 Series of small 4-pole fixed-frequency, precision active filters provide high performance linear active filtering in a compact 32-pin DIP package, with a broad range of corner frequencies and a choice of transfer functions. Individual D61 filters can serve in low-pass or high-pass applications or be combined to create custom band-pass or band reject filters. These fully self-contained units require no external components or adjustments. Each model comes factory tuned to a user-specified corner frequency between 0.02 Hz and 1.00 Hz and operate with low total harmonic distortion over a wide dynamic input voltage range from non-critical +/-5V to +/-18V power supplies.

Features/Benefits:

  • Low harmonic distortion and wide signal-to-noise ratio
  • Compact 1.8"L x 0.8"W x 0.5"H minimizes board space requirements.
  • Plug-in ready-to-use, reducing engineering design and manufacturing cycle time.
  • Factory tuned, no external clocks or adjustments needed
  • Broad range of transfer characteristics and corner frequencies to meet a wide range of applications.





Applications

  • Anti-alias filtering
  • Data acquisition systems
  • Communication systems and electronics
  • Medical electronics equipment and research
  • Aerospace, navigation and sonar applications
  • Sound and vibration testing
  • Acoustic and vibration analysis and control
  • Noise elimination
  • Signal reconstruction

Available Low-Pass Models:

D61L4B
4-pole Butterworth
D61L4L
4-pole Bessel


Available High-Pass Models:

D61H4B
4-pole Butterworth


Fixed Frequency
4-Pole
Low-Pass and High-Pass Filters
Model D61L4B D61L4L   Model D61H4B
Product Specifications

Low-Pass

High-Pass
Transfer Function

Size

Range fc
   D61

4-Pole, Butterworth

1.8” x 0.8” x 0.5”


0.02 Hz to 1.00 Hz
4-Pole, Bessel

1.8” x 0.8” x 0.5”


0.02 Hz to 1.00 Hz
  Transfer Function

Size

Range fc
   D61

4-Pole, Butterworth

1.8” x 0.8” x 0.5”


0.02 Hz to 1.00 Hz
Theoretical Transfer
Characteristics
Click to view
Click to view

Click to view
Passband Ripple
   (theoretical)
0.0 dB 0.0 dB   Passband Ripple
   (theoretical)
0.0 dB
DC Voltage Gain

(non-inverting)
0 ± 0.1 dB max
0 ± 0.05 dB typ.
0 ± 0.1 dB max
0 ± 0.05 dB typ.
  Voltage Gain

(non-inverting)
0 ± 0.2 dB to 100 kHz
0 ± 0.5 dB to 120 kHz
        Power Bandwidth 120 kHz
        Small Signal Bandwidth (-6 dB) 1 MHz
Stopband
Attenuation Rate
24 dB/octave 24 dB/octave   Stopband
Attenuation Rate
24 dB/octave
Cutoff Frequency
Stability
Amplitude
Phase
fc          ± 2% max.
± 0.01% /°c
-3 dB
-180°
fc          ± 2% max.
± 0.01% /°c
-3 dB
-121°
  Cutoff Frequency
Stability
Amplitude
Phase
fc          ± 2% max.
± 0.01% /°c
-3 dB
-180°
Filter Attenuation

(theoretical)
0.67 dB       0.80 fc
3.01 dB       1.00 fc
30.0 dB       2.37 fc
40.0 dB       3.16 fc
1.86 dB       0.80 fc
3.01 dB       1.00 fc
30.0 dB       3.50 fc
40.0 dB       4.72 fc
  Filter Attenuation

(theoretical)
40.0 dB       0.31 fc
30.0 dB       0.42 fc
3.01 dB       1.00 fc
0.02 dB       2.00 fc
Phase Match1
0 - 0.8 fc
± 2° max.
± 1° typ.
0.8 fc - 1.0 fc
± 3° max.
± 1.5° typ.
0 - fc
± 2° max.
± 1° typ.
  Phase Match1
0 -100 kHz
± 3° max.
± 1.5° typ.
Amplitude Accuracy

(theoretical)
0 - 0.8 fc
± 0.2 dB max.
± 0.1 dB typ.
0.8 fc - 1.0 fc
± 0.3 dB max.
± 0.15 dB typ.
0 - fc
± 0.2 dB max.
± 0.1 dB typ.
  Amplitude Accuracy

(theoretical)
1.0 - 1.25 fc
± 0.30 dB max.
± 0.15 dB typ.
1.25 fc - 100 kHz
± 0.20 dB max.
± 0.10 dB typ.
Wide Band Noise

(5 Hz - 2 MHz)
200 µVrms typ. 200 µVrms typ.   Wide Band Noise

(5 Hz - 2 MHz)
400 µVrms typ.
Narrow Band Noise

(20 Hz - 100 kHz)
50 µVrms typ. 50 µVrms typ.   Narrow Band Noise

(20 Hz - 100 kHz)
100 µVrms typ.
Filter Mounting
Assembly
FMA-01S FMA-01S   Filter Mounting
Assembly
FMA-01S


Specifications

(@ 25°C and Vs ±15 Vdc)

Analog Input Characteristics1
  • Impedance: 10 kΩ min.
  • Voltage Range: ± 10 Vpeak
  • Max. Safe Voltage: ± Vs

Analog Output Characteristics

  • Impedance(Closed Loop):
    1 Ω typ., 10 Ω max.
  • Linear Operating Range: ± 10 V
  • Maximum Current2: ± 2 mA
  • Offset Voltage3:
    2 mV typ., 10 mV max.
    Offset Temp. Coeff.: 50 µV / °C

Notes:

  1. Input and output signal voltage referenced to supply common.
  2. Output is short circuit protected to common. DO NOT CONNECT TO +/-Vs.
  3. Adjustable to zero.
  4. Units operate with or without offset pin connected.
  5. How to Specify Corner Frequency:

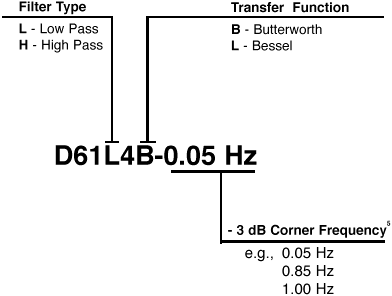

    Corner frequencies are specified by attaching a three digit frequency designator to the basic model number. Corner frequencies can range from 0.05 Hz to 100 Hz.
Power Supply (+/-V)
  • Rated Voltage: ± 15 Vdc
  • Operating Range: ± 5 to ± 18 Vdc
  • Maximum Safe Voltage: ± 18 Vdc
  • Quiescent Current D61:
    ± 12.5 mA typ., ± 20 mA max.

Temperature

  • Operating: 0 to + 70°C
  • Storage: -25 to+85°C


Pin-Out and Package Data

Filter Mounting Assembly-See FMA-01S


Ordering Information
