D64BP

1 Hz to 100 kHz
32 Pin DIP
Footprint

Specifications

Pin-out and package data

Ordering Information


Download PDF File

Download Adobe Acrobat Reader
Download Acrobat Reader

D64BP Series
Fixed Frequency
2-Pole Pair
Band-Pass Filters




Purchase





Description

The D64BP Series of small 2-pole-pair fixed-frequency, precision band-pass active filter that provides high performance in a compact 32-pin DIP package, with a broad range of fixed center frequencies (fo) from 1 Hz to 100 kHz. Each filter type features a near theoretical amplitude/phase response along with low output voltage noise enabling these filters to achieve a 10,000:1 or better dynamic signal range.

Pretuned to within ±2% of the fixed, user specified center frequency, band-pass D64BP filters pass all frequencies lying between the upper and lower -3dB points of the amplitude response curve. Available Q’s for D64BP models are 1, 2, 5, or 10.

Features/Benefits:

  • Compact 1.8"L x 0.8"W x 0.3"H minimizes board space requirements.
  • Plug-in ready-to-use, reducing engineering design and manufacturing cycle time.
  • Factory tuned, no external clocks or adjustments needed
  • Broad range of transfer characteristics and corner frequencies to meet a wide range of applications


Applications

  • Power line interference rejection
  • Transducer output filtering
  • Production test instrumentation
  • Medical electronics equipment and research
  • Comb filtering and equalization
  • Noise and harmonic analysis
  • RMS measurements
  • Frequency spectrum analysis

Available Band-Pass Models:

D64BP2 2 Pole Pair


Band-Pass
D64BP Series
Fixed Frequency
2-Pole Pair Filters
Model D64BP2
Product Specifications

Band-Pass
Size

Range fo

Available "Q’s"1

Q Accuracy

1.8" x 0.8" x 0.3"

1 Hz to 100 kHz

1, 2, 5, 10

±10%

Theoretical Transfer
Characteristics
Click to view

Pass-Band Gain

(non-inverting)
0± 0.2 dB typ.
0± 0.4 dB max.
Attenuation Rate 12 dB/octave
Center Frequency fo     ±2% max.
Stability ±0.01%/°C
Filter Mounting
Assembly
FMA-01S

Notes 1: Q – Quality Factor for band-pass filters. Q = fo / (fH - fL)

fo=sq.rt.(fH x fL)


Specifications

(@ 25°C and Vs ±15 Vdc)

Analog Input Characteristics 1
  • Impedance: 10 kΩ min.
  • Voltage Range: ± 10 Vpeak
  • Max. Safe Voltage: ± Vs

Analog Output Characteristics

  • Impedance(Closed Loop):
    1 Ω typ., 10 Ω max.
  • Linear Operating Range: ± 10 V
  • Maximum Current2: ± 2 mA
  • Offset Voltage3:
    2 mV typ., 20 mV max.
  • Offset Temp. Coeff.: 50 µV / °C

Notes:

  1. Input and output signal voltage referenced to supply common.
  2. Output is short circuit protected to common. DO NOT CONNECT TO +/-Vs.
  3. Adjustable to zero.
  4. Units operate with or without offset pin connected.
  5. How to Specify Center Frequency:
    Centwer frequencies are specified by attaching a three digit frequency designator to the basic model number. Center frequencies can range from 1 Hz to 100 kHz.
Power Supply (+/-Vs)
  • Rated Voltage: ± 15 Vdc
  • Operating Range: ± 5 to ± 18 Vdc
  • Maximum Safe Voltage: ± 18 Vdc
  • Quiescent Current:
    ± 12.5 mA typ., ± 20 mA max.

Temperature

  • Operating: 0 to + 70°C
  • Storage: -25 to+85°C

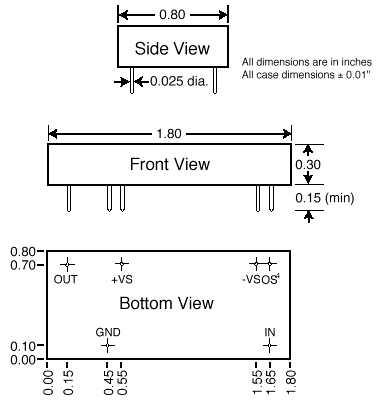

Pin-Out and Package Data

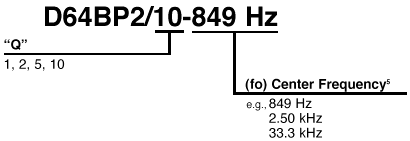

Ordering Information


We hope the information given here will be helpful. The information is based on data and our best knowledge, and we consider the information to be true and accurate. Please read all statements, recommendations or suggestions herein in conjunction with our conditions of sale which apply to all goods supplied by us. We assume no responsibility for the use of these statements, recommendations or suggestions, nor do we intend them as a recommendation for any use which would infringe any patent or copyright.
