D76 & DP76 Series
Fixed Frequency
6-Pole Filters




Purchase





Description

The D76 and DP76 Series of low-power, fixed-frequency, linear active filters are high performance, 6-pole filters in a compact package. These Butterworth and Bessel low-pass and Butterworth high-pass filters (D76 only) combine linear active filter design with the space savings of a 32-pin dual in-line package (DIP). Each model comes factory tuned to a user-specified corner frequency between 1 Hz and 100 kHz (DP76, 1 Hz to 5kHz). These fully self-contained units require no external components or adjustments and operate with dynamic input voltage range from non-critical ±5V to ±18V power supplies.

Features/Benefits:

  • Low cost solution for low frequency signal conditioning
  • Compact DIP design minimizes board space requirements
  • Plug-in ready-to-use, reducing engineering design and manufacturing time
  • Factory tuned, no external clocks or adjustments needed saving time and labor of other discrete assembly solutions
  • Low harmonic distortion and wide signal-to-noise ratio to 12 bit resolution



Available High-Pass Models:

D76H6B 6-pole Butterworth


Applications

  • Anti-alias filtering
  • Vibration & shock analysis
  • Automatic test equipment
  • Aerospace, navigation and sonar
  • Communication systems
  • Medical electronics
  • Sound and vibration testing
  • Noise elimination
  • Process control

Available Low-Pass Models:

D76L6B 6-pole Butterworth
DP76L6B 6-pole Butterworth
(Low Power)
D76L6L 6-pole Bessel
DP76L6L 6-pole Bessel
(Low Power)


Fixed Frequency
6-Pole
Low-Pass and High-Pass Filters
Model D76L6B & DP76L6B D76L6L & DP76L6L   Model D76H6B
Product Specifications

Low-Pass

High-Pass
Transfer Function

Size
   D76
1.00 Hz to 1.00 kHz
   D76
1.01 kHz to 100 kHz
   DP76
1.00 Hz to 5.00 kHz

Range fc
   D76
   DP76
6-Pole, Butterworth


1.8” x 0.8” x 0.5”
1.8” x 0.8” x 0.3”
1.8” x 0.8” x 0.5”


1.00 Hz to 100 kHz
1.00 Hz to 5.00 kHz

6-Pole, Bessel


1.8” x 0.8” x 0.5”
1.8” x 0.8” x 0.3”
1.8” x 0.8” x 0.5”


1.00 Hz to 100 kHz
1.00 Hz to 5.00 kHz

  Transfer Function

Size
   D76
1.00 Hz to 1.00 kHz
   D76
1.01 kHz to 100 kHz



Range fc
   D76
6-Pole, Butterworth


1.8” x 0.8” x 0.5”
1.8” x 0.8” x 0.3”



1.00 Hz to 100 kHz

Theoretical Transfer
Characteristics
Click to view
Click to view
  Theoretical Transfer
Characteristics
Click to view
Passband Ripple
   (theoretical)
0.0 dB 0.0 dB   Passband Ripple
   (theoretical)
0.0 dB
DC Voltage Gain

(non-inverting)
0 ± 0.1 dB typ. 0 ± 0.1 dB typ.   Voltage Gain

(non-inverting)
0 ± 0.1 dB to 100 kHz
Stopband
Attenuation Rate
36 dB/octave 36 dB/octave   Stopband
Attenuation Rate
36 dB/octave
        Power Bandwidth 120 kHz
        Small Signal Bandwidth (-6 dB) 1 MHz
Cutoff Frequency
Stability
Amplitude
Phase
fc          ± 2% max.
± 0.03% /°c
-3 dB
-270°
fc          ± 2% max.
± 0.03% /°c
-3 dB
-155°
  Cutoff Frequency
Stability
Amplitude
Phase
fc          ± 2% max.
± 0.03% /°c
-3 dB
-270°
Filter Attenuation

(theoretical)
0.29 dB       0.80 fc
3.01 dB       1.00 fc
60.0 dB       3.16 fc
80.0 dB       4.64 fc
1.89 dB       0.80 fc
3.01 dB       1.00 fc
60.0 dB       5.41 fc
80.0 dB       7.99 fc
  Filter Attenuation

(theoretical)
80.0 dB       .21 fc
60.0 dB       .32 fc
3.01 dB       1.00 fc
0.00 dB       2.50 fc
Total Harmonic
Distortion @ 1 kHz
   D76
   DP76
< - 70 dB
< - 70 dB
< - 70 dB
< - 70 dB
  Total Harmonic
Distortion @ 1 kHz
   D76
< - 70 dB
Wide Band Noise

(5 Hz - 2 MHz)
200 µVrms typ. 200 µVrms typ.   Wide Band Noise

(5 Hz - 2 MHz)
400 µVrms typ.
Narrow Band Noise

(20 Hz - 100 kHz)
50 µVrms typ. 50 µVrms typ.   Narrow Band Noise

(20 Hz - 100 kHz)
100 µVrms typ.
Filter Mounting
Assembly
FMA-01S FMA-01S   Filter Mounting
Assembly
FMA-01S


Specifications

(@ 25°C and Vs ±15 Vdc)

Analog Input Characteristics1
  • Impedance: 10 kΩ min.
  • Voltage Range: ± 10 Vpeak
  • Max. Safe Voltage: ± Vs

Analog Output Characteristics

  • Impedance(Closed Loop): 1 W
  • Linear Operating Range: ± 10 V
  • Maximum Current2:
      D76 ± 10 mA

      DP76 ± 5 mA
  • Offset Voltage:
    20 mV max., 3 mV typ.
  • Offset Temp. Coeff.: 20 µV / °C

Notes:

  1. Input and output signal voltage referenced to supply common.
  2. Output is short circuit protected to common. DO NOT CONNECT TO +/-Vs.
  3. How to Specify Corner Frequency:
    Corner frequencies are specified by attaching a three digit frequency designator to the basic model number. Corner frequencies can range from 1.00 Hz to 100 kHz.
Power Supply (+/-V)
  • Rated Voltage: ± 15 Vdc
  • Operating Range: ± 5 to ± 18 Vdc
  • Maximum Safe Voltage: ± 18 Vdc
  • Quiescent Current D76:
    9 mA max., 6.5 mA typ.
  • Quiescent Current DP76:
    2.5 mA max., 1.2 mA typ.

Temperature

  • Operating: 0 to + 70°C
  • Storage: -25 to+85°C


Pin-Out and Package Data

Filter Mounting Assembly-See FMA-01S

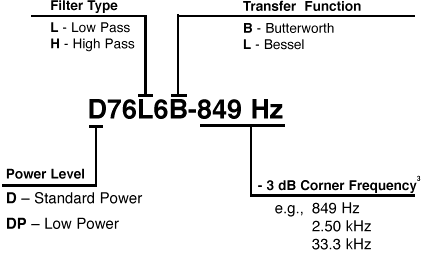

Ordering Information


We hope the information given here will be helpful. The information is based on data and our best knowledge, and we consider the information to be true and accurate. Please read all statements, recommendations or suggestions herein in conjunction with our conditions of sale which apply to all goods supplied by us. We assume no responsibility for the use of these statements, recommendations or suggestions, nor do we intend them as a recommendation for any use which would infringe any patent or copyright.
