D45Q Quadrature
Sine Wave Oscillator


Purchase





Description

The D45Q Oscillators are fixed frequency sine wave oscillators that deliver two high purity sinusoidal outputs that are 90 degrees out of phase. These fully finished devices can be user specified to operate to any frequency between 100 Hz and 100.0 kHz.

Each D45Q model includes sine and cosine 7.07 volt rms (±0.2 dB) outputs with total harmonic distortion of less than -45 to -60 dB depending on frequency. The phase between the sine and cosine outputs is 90.00 degrees ±0.15 to ±0.30 degrees depending on frequency.

Features/Benefits:

  • Stable high purity sinewave output.
  • Compact 1.8"L x 0.8"W x 0.3"H minimizes board space requirements.
  • Plug-in ready-to-use, reducing engineering design and manufacturing cycle time.


Applications

  • Reference oscillator
  • Airborne equipment
  • Mobile equipment
  • Test Apparatus
  • Telemetry Systems
  • Distortion Testing


Specifications

(@ 25°C and Vs ±15 Vdc)

Oscillation Frequency (fo)
  • Range: 100 Hz to 100.0 kHz
  • Tolerance1: ±0.1%
  • Frequency Stability
    Temperature: 0.02%/°C
    Supply/Output Amplitude Variation: 0.01%/%

Output Characteristics
Amplitude

  • Preset: 20V p-p ±0.2 dB
  • Stability vs. Temperature: 0.002 dB/°C
  • Stability vs. Supply Voltage: 0.1 dB/%

Drive Capacity

  • Output current @ 20V p-p2: ±5mA pk
  • Output Resistance @ 20V p-p: <10 ohm

Distortion

  • Harmonic:3

    100Hz to 10.0kHz: 0.1% (-60 dB) 10.1kHz to 50.0kHz: 0.18% (-55 dB) 50.1kHz to 100.0kHz: 0.56% (-45 dB)
  • Noise: 50µVrms
DC Power Supply (±Vs)
  • Operating Range: ± 15 Vdc
  • Operating Voltage Range:
    ± 12 Vdc to ± 18 Vdc
  • Maximum Safe Voltage: ± 18 Vdc
  • Quiescent Current:
    ± 10 mA typ.
    ± 12 mA max.

Temperature

  • Operating: 0 to + 70°C
  • Storage: -25 to+85°C

Notes:

  1. Factory adjusted.
  2. The output is short circuit protected.
  3. Distortion is primarily third harmonic. Specification is for resistive loading.

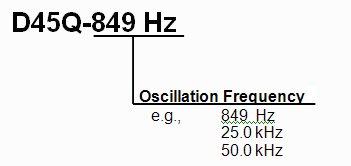

  4. How to Specify Oscillation Frequency:
    Oscillation frequencies are specified by attaching a three-digit frequency designator to the basic model number. Oscillation frequencies can range from 100 Hz to 100.0 kHz.

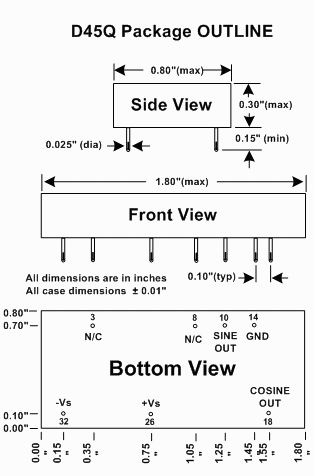

Pin-Out and Package Data





TERMINAL KEY

Sine Out Sine Signal Output
Cosine Out Cosine Signal Output
N/C No Connection
+Vs Power Supply Voltage, Positive
GND Ground
-Vs Supply Voltage, Negative



Ordering Information


We hope the information given here will be helpful. The information is based on data and our best knowledge, and we consider the information to be true and accurate. Please read all statements, recommendations or suggestions herein in conjunction with our conditions of sale which apply to all goods supplied by us. We assume no responsibility for the use of these statements, recommendations or suggestions, nor do we intend them as a recommendation for any use which would infringe any patent or copyright.
