VM16FFFA
Fixed Frequency Filter
with Selectable Gain




Purchase





Description

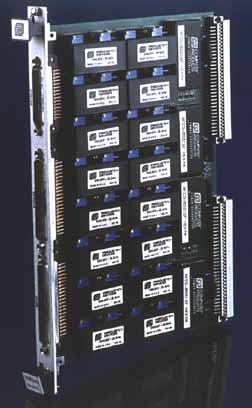

Frequency Devices' Model VM16FFFA comprises a family of VMEbus filter/amplifier boards offering sixteen channels of linear analog filtering with jumper-select gain of 1, 10, 100, 200 and 500 in a single width B-size (6U) VME form factor. Each instrument offers sixteen differential signal inputs through a shielded front panel connector that provides signal buffering, gain setting, and fixed frequency filtering for each channel. VM16FFFA boards may be configured with one of several filters with standard factory set cut-off frequencies from 0.02 Hz to 100 kHz, and with high- or low-pass transfer functions allowing user to externally cascade filters into band-pass configurations. The boards use the VMEbus for power only.

Features/Benefits:

  • A convenient way to provide simultaneous access to 16 channels of precise filtering and gain in a VME system.
  • Individual l/O offset adjustment for each channel allows for offset adjustment independent of gain.
  • Broad range of transfer characteristics and corner frequencies are offered to meet a wide range of applications
  • Low harmonic distortion and wide signal-to-noise ratio to 16-bit resolution with interchannel crosstalk <-80 dB.

Applications

  • Engine test and simulation
  • Automotive test cells
  • Aerospace, navigation & sonar
  • Laboratory R & D
  • Acoustic and vibration analysis
  • Satellite & Telecommunications
  • Automatic test equipment (ATE)
  • Industrial process control


LOW-PASS FILTER OPTIONS

  2-Pole D72, DP72
  4-Pole D61, D64, DP64, D74, DP74
  6-Pole D66, DP66, D76, DP76
  8-Pole D68, DP68, D78, DP78


HIGH-PASS FILTER OPTIONS

  2-Pole D72
  4-Pole D61, D64, D74
  6-Pole D66, D76
  8-Pole D68, D78


BAND-PASS FILTER OPTIONS

  2-Pole Pair D64BP
  4-Pole Pair D68BP


BAND-REJECT (NOTCH) FILTER OPTIONS

    4-Pole Pair D68BR




Specifications

(@ 25°C and rated power input)

Analog Input
  • Impedance: 1 MΩ // 47pF
  • Input Range: ±10V pk. Iinear
  • Maximum Input:
    ± 30V peak, either input
  • Common Mode Rejection:
    70 dB typ., 60 dB min. @60 Hz.

Analog Output

  • Impedance: 1 Ω typ., 10 Ω max.
  • Linear Operating Range: ±10V pk.
  • Channel to Channel Crosstalk:
    <-80 dB @ 20 kHz
  • Maximum Current: ±5mA
  • Offset Voltage: ±2mV max. trimmable to zero
  • Short Circuit Protection: Short to Ground
  • Peak Distortion @ 1 kHz, Gain of x1: -95 dBc max., D68 w/7.07 Vrms input
  • In-Band Spectral Noise, Gain of x500:
    80nV / sqrt(Hz) max., D68 idle channel

Filter Characteristics

Gain

  • Jumper Selectable Steps:
    1, 10, 100, 200, 500
  • Accuracy: ±2%
Power Supply
  • From VME Backplane:
    +5V, ±5%, 4.0 A max.,
    outputs unloaded
  • Isolation: Analog ground may be isolated from VME and chassis ground by jumper.

Environmental

  • Operating Temperature: 0°C to +70°C
  • Storage Temperature: -25°C to +85°C
  • Humidity 0-95% non-condensing

Mechanical

  • Card Size: VMEbus 6U single slot
    9.17 x 6.3 inches, (233 x 160 mm)
  • No. of Input Channels:
    16 Differential - DC coupled
  • No. of Output Channels:
    16 Single Ended - DC coupled
  • Mating Connectors:
    62-pin "D", Quantity 2, Input and Bypass,
    44-pin "D", Quantity 1, Output
  • Weight: 1.5 Ibs., (0.68 kg.)
